OHF124-OHF30
Key Features:
- Quiet Yet Powerful Performance: With a 300 CFM motor, the ONEX OHF124-SS effectively removes smoke, grease, and odors while keeping noise levels as low as 52 dB, ensuring a peaceful cooking environment.
- Dual-Mode Ventilation – Ducted or Ductless: This range hood offers versatile installation options, featuring three vents for ducted ventilation (top or back) or ductless recirculating mode via the front vent. A carbon filter is included for easy recirculation and air purification.
- Easy-to-Maintain Carbon Filter: The included carbon filter efficiently traps grease, smoke, and cooking odors. It’s simple to remove and clean, making maintenance hassle-free.
- User-Friendly Rocker Switch Controls: Operate the range hood effortlessly with two-speed rocker switch controls, allowing you to customize ventilation levels based on your cooking needs.
- Energy-Efficient LED Lighting: Equipped with a 2W LED light, this range hood provides bright, energy-saving illumination, ensuring a well-lit cooking area for maximum visibility.
- Size: 24 inches
- Airflow: 300 CFM
- Noise Level: 52 dB
- Ventilation Options: Ducted (Top/Back) or Ductless Recirculation (Front)
- Filters: 1 Carbon Filter (Included)
- Lighting: 1 Energy-Saving LED Bulb
- Material: Premium Stainless Steel
OHF124-OHF30
Key Features:
- Quiet Yet Powerful Performance: With a 300 CFM motor, the ONEX OHF130-SS effectively removes smoke, grease, and odors while keeping noise levels as low as 52 dB, ensuring a peaceful cooking environment.
- Dual-Mode Ventilation – Ducted or Ductless: This range hood offers versatile installation options, featuring three vents for ducted ventilation (top or back) or ductless recirculating mode via the front vent. A carbon filter is included for easy recirculation and air purification.
- Easy-to-Maintain Carbon Filter: The included carbon filter efficiently traps grease, smoke, and cooking odors. It’s simple to remove and clean, making maintenance hassle-free.
- User-Friendly Rocker Switch Controls: Operate the range hood effortlessly with two-speed rocker switch controls, allowing you to customize ventilation levels based on your cooking needs.
- Energy-Efficient LED Lighting: Equipped with a 2W LED light, this range hood provides bright, energy-saving illumination, ensuring a well-lit cooking area for maximum visibility.
- Size: 30 inches
- Airflow: 300 CFM
- Noise Level: 52 dB
- Ventilation Options: Ducted (Top/Back) or Ductless Recirculation (Front)
- Filters: 1 Carbon Filter (Included)
- Lighting: 1 Energy-Saving LED Bulb
- Material: Premium Stainless Steel
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF240-SS
Under-Cabinet, Range Hood,
Stainless Steel, 24"
Venting Size: 10″ rectangular duct
(Vent exhaust & back draft damper)
3 speeds: maximum airflow = 400 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 80W
Noise-Level: 52dBA - 65dBA
Keypad Type: Electronic Control Push Buttons
Material & Finish: Stainless Steel
Filter: Baffle Filter
[Available with White Finish. See model #OHF240-WH]
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF240-WH
Under-Cabinet, Range Hood,
Stainless Steel in White Color, 24"
Venting Size: 10″ rectangular duct
(Vent exhaust & back draft damper)
3 speeds: maximum airflow = 450 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 80W
Noise-Level: 52dBA - 65dBA
Keypad Type: Electronic Control Push Buttons
Material & Finish: Stainless Steel & White
Filter: Baffle Filter
[Available with Stainless steel Finish. See model #OHF240-SS]
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF300BL
[icon name="file-pdf-o" class="" unprefixed_class=""] Manual;: OHF300BL
Under-Cabinet, Black Range Hood, Stainless Steel, 30" Wide
Venting Size: 10″ rectangular duct
(Vent exhaust & back draft damper)
3 speeds: maximum airflow = 450 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 80W
Noise-Level: 52dBA - 65dBA
Keypad Type: Electronic Control Push Buttons
Material: Stainless Steel, Finish: Black
Filter: Aluminum Mesh Filters
[Available with Steel Finish. See model #OHF300]
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF300SS
[icon name="file-pdf-o" class="" unprefixed_class=""] Manual: OHF300SS
Under-Cabinet, Range Hood,
Stainless Steel, 30"
Venting Size: 10″ rectangular duct
(Vent exhaust & back draft damper)
3 speeds: maximum airflow = 400 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 80W
Noise-Level: 52dBA - 65dBA
Keypad Type: Electronic Control Push Buttons
Material & Finish: Stainless Steel
Filter: Baffle Filter
[Available with White & Black Finish. See model #OHF300WH, OHF300BL]
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF300WH
[icon name="file-pdf-o" class="" unprefixed_class=""] Manual;: OHF300WH
Under-Cabinet, White Range Hood, Stainless Steel, 30" Wide
Venting Size: 10″ rectangular duct
(Vent exhaust & back draft damper)
3 speeds: maximum airflow = 450 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 80W
Noise-Level: 52dBA - 65dBA
Keypad Type: Electronic Control Push Buttons
Material: Stainless Steel, Finish: White
Filter: Baffle Filters
[Available with Steel Finish. See model #OHF300]
OHF500
Key Features:
- Powerful Yet Quiet Performance: Equipped with a 550 CFM motor, this range hood efficiently removes smoke, grease, and odors from your kitchen while maintaining a low noise level of just 52 dB, ensuring a peaceful cooking experience.
- Dual Mode Ventilation – Ducted or Ductless: The ONEX OHF500 is a dual-mode range hood, featuring three vents for versatile installation. Use it as a ducted range hood with back or top vents or opt for a ductless recirculating mode with a front vent (requires carbon filters, sold separately).
- Dishwasher-Safe Baffle Filters: Includes two durable baffle filters that are easy to remove and dishwasher-safe, making maintenance simple and convenient.
- Push Button Control Panel: The intuitive push-button control panel allows effortless operation of the fan and lights, accommodating various cooking methods with ease.
- Energy-Efficient LED Lighting: Comes with two eco-friendly LED bulbs that provide bright, flicker-free illumination. Control the lighting easily through the push-button panel for optimal visibility.
- Size: 30 inches
- Airflow: 550 CFM
- Noise Level: 52 dB
- Filters: 2 Dishwasher-Safe Baffle Filters
- Lighting: 2 LED Bulbs (Energy-Saving, No Glare)
- Material: Premium Stainless Steel
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF60D-SS
Venting Size: 6" round duct
(vent exhaust & back draft damper)
3 speeds: maximum airflow = 700 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 200W
Noise-Level: 52dBA - 65dBA
Keypad Type: Soft Touch Control
Material: Stainless Steel
Filter: Baffle Filter, Dishwasher-Safe
[Available with a White Finish.
See Model #OHF60D-WH]

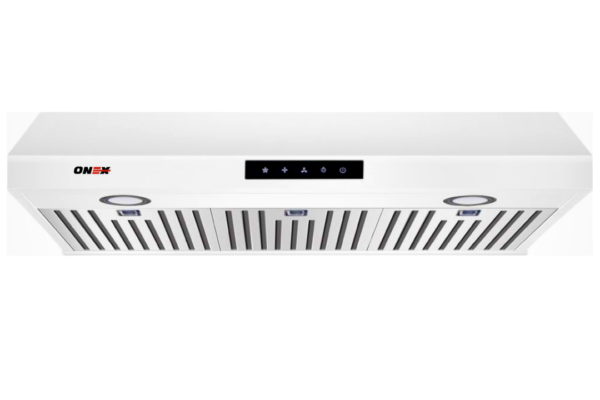

[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF60D-WH
Under-Cabinet, White Range Hood,
430 Stainless Steel, 30"
Venting Size: 6" round duct
(vent exhaust & back draft damper)
3 speeds: maximum airflow = 700 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 200W
Noise-Level: 52dBA - 65dBA
Keypad Type: Soft Touch Control
Material: Stainless Steel
Filter: Baffle Filter, Dishwasher-Safe
[Available with a Stainless Steel Finish.
See Model #OHF60D-SS]
OHF85D
Key Features:
- Powerful Yet Quiet Performance: Featuring an impressive 850 CFM airflow, this premium range hood ensures rapid and efficient kitchen ventilation. Despite its powerful motor, it operates quietly at just 52 dB, providing a comfortable and enjoyable cooking experience.
- Dishwasher-Safe Baffle Filters: Equipped with three durable baffle filters, the ONEX Range Hood is easy to maintain. Simply pop out the filters and place them in your dishwasher for a hassle-free cleaning experience.
- Soft Touch Control Panel: The range hood includes a premium soft-touch control panel, designed for intuitive operation. Adjust fan speeds or control the lights effortlessly with its sleek, responsive interface.
- Energy-Efficient LED Lighting: Comes with two eco-friendly LED bulbs, offering bright, flicker-free illumination for your cooking area. Easily switch the lights on or off using the control panel.
- Size: 30 inches
- Airflow: 850 CFM
- Noise Level: 52 dB
- Filters: 3 Baffle Filters (Dishwasher-Safe)
- Lighting: 2 LED Bulbs (Energy-Saving, No Glare)
- Material: Premium Stainless Steel
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF90D
Under-Cabinet, Range Hood,
Stainless Steel, 30"
Venting Size: 6" round duct
(Vent exhaust & back draft damper)
3 speeds: maximum airflow = 860 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 250W
Noise-Level: 52dBA - 65dBA
Keypad Type: Soft Touch & Hand-Wave Control
Material: Stainless Steel
Filter: Baffle Filter, Dishwasher-Safe
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF90E
Under-Cabinet, Range Hood,
Stainless Steel, 30"
Venting Size: 6" round duct
(Vent exhaust & back draft damper)
3 speeds: maximum airflow = 860 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 250W
Noise-Level: 52dBA - 65dBA
Keypad Type: Electronic Control Push Buttons
Material: Stainless Steel
Filter: Baffle Filter, Dishwasher-Safe
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF90R
Under-Cabinet, Range Hood,
430 Stainless Steel, 30"
Venting Size: 6" round duct
(Vent exhaust & back draft damper)
3 speeds: maximum airflow = 900 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 250W
Noise-Level: 52dBA - 65dBA
Keypad Type: Soft-Touch & Hand-Wave Control
Material: 430 Stainless Steel
Filter: Baffle Filter, Dishwasher-Safe
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF90R-BL
Under-Cabinet, Range Hood,
430 Stainless Steel, 30"
Venting Size: 6" round duct
(Vent exhaust & back draft damper)
3 speeds: maximum airflow = 900 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 250W
Noise-Level: 52dBA - 65dBA
Keypad Type: Soft-Touch & Hand-Wave Control
Material: 430 Black Stainless Steel
Filter: Baffle Filter, Dishwasher-Safe
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF96R
Under-Cabinet, Range Hood,
430 Stainless Steel, 36"
Venting Size: 6" round duct
(Vent exhaust & back draft damper)
6 speeds, Max. airflow = 900 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 250W
Noise-Level: 52dBA - 65dBA
Keypad Type: Soft-Touch & Hand-Wave Control
Material: 430 Stainless Steel
Filter: Baffle Filter, Dishwasher-Safe
[icon name="file-pdf-o" class="" unprefixed_class=""] View Spec Sheet: OHF96R-BL
Under-Cabinet, Range Hood,
Black Stainless Steel, 36"
Venting Size: 6" round duct
(Vent exhaust & back draft damper)
6 speeds, Max. airflow = 900 CFM
Lighting: 2x2W LED lamps
Voltage: 110v/60Hz, Motor: 250W
Noise-Level: 52dBA - 65dBA
Keypad Type: Soft-Touch & Hand-Wave Control
Material: 430 Black Stainless Steel
Filter: Baffle Filter, Dishwasher-Safe
